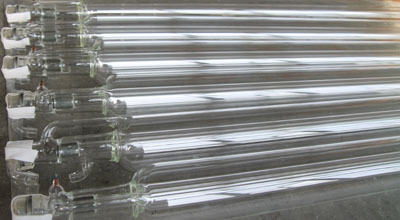

Puri Small & Medium Laser Tube: 60W-100W
     浦镭60w,80w,100w CO2激光管

  The Shanghai Puri 60W-100W small&medium power CO2 laser tube mainly used for laser engraving and cutting, applies to the vast majority of domestic the laser machinery manufacturing. Puri laser tube with middle & small power is excellent in good laser spot mode, enough power, long life, etc..
  Working Principle: high-pressure discharge stimulate high concentration CO2 to generate laser.
  Laser Wave Length: 10.6um。
  Laser Mode:low order mode.
   Water-Cooling:purified water, appropriate temperature 10-35℃.
  Working Environment:temperature 5-35℃, humidity 10-60%, clean environment, no serious pollution.
  Working Current:16~22mA is appropriate (excessive current will affect laser power and laser tube lifetime.
  Safety Demand:CO2 laser tube outputs invisible light, positive with high pressure, if necessary, eyewear is essential.
  Laser State: Laser power will be attenuated when the laser tube is used at a certain time; If the laser is pink, it is in normal condition; if the laser is white, it means the laser power is attenuate. ( Laser tube is consumable, please change a new one when it can’t meet demand due to attenuation. )
  Laser State:
     1、 There are two points to support the laser tube at two sides, when you install the laser tube, the two points should be in 1/4 of the laser tube;
     2、On the basis of cooling water above-in and below-out, if you rotate the laser tube slightly, it will affect laser spot and laser power.

  Puri CO2 Laser Tube Parameter: (Testing & Waiting):
Small Laser Tube: 25W-50W
Small&Medium Laser Tube: 60W-100W
Small&Medium Laser Tube: 120W-150W
Medium Laser Tube: 300W
Regular Laser Tube - C Series
High Power Catalyst CO2 Laser Tube-M series
Regular Catalyst CO2 Laser Tube-R series
High Class Catalyst CO2 Laser Tube-H series
Laser Power: the 2nd generation with high quality



浦镭二氧化碳激光管





Model/Length
(mm)
Outer Diameter
(mm)
Output Power
(W)
Rated Power
(W)
Ignition Voltage
(KV)
Ignition Current
(MA)
Working Voltage
(KV)
Working Current
(MA)
pu1200 60 60-70 60 18-20 6-8 14-15 18-20
pu1600 60 80-90 80 20-22 6-8 14-15 18-22
pu1800 60 95-110 100 20-23 6-9 16-17 20-25
