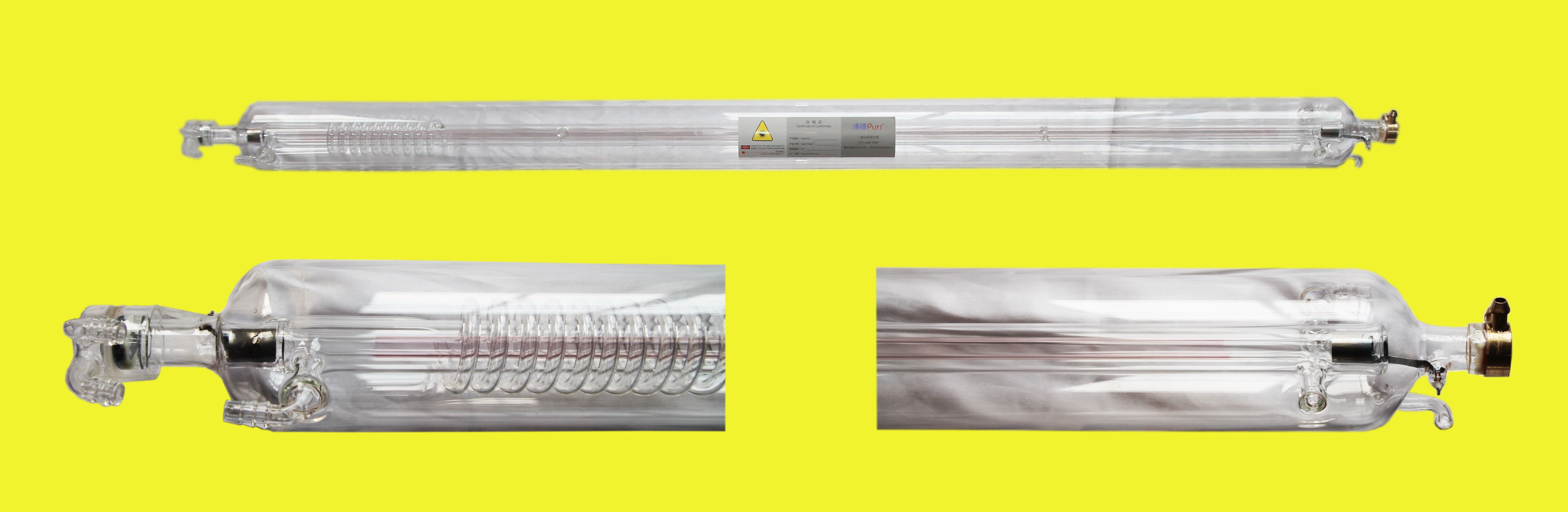

Regular Laser Tube - C Series
     Regular Laser Tube

Prdouct Features:
1.Stability: the raw glass tube body is imported.We are the unique manufacturer for adopting advanced foreign technology to use metal-glass sealing technology on CO2 laser tube.
2.Power: the C series CO2 Laser Tube uses imported mirror and lens. The power is 40% higher than other laser tube with same length.
3. Long Lifespan: working life is around 2500 hours, no power weakening during long time working.
4. Laser Beam: adjustable optical resonant cavity, super laser beam quality. The beam is up to TEM00, the power is stable, it’s competitive for industrial application.
5. Appearance: all accessories are processed by imported equipments, unique metal and glass tube sealing technology, standardized productio
 Regular Laser Tube - C Series Parameter: (Testing & Waiting):
Small Laser Tube: 25W-50W
Small&Medium Laser Tube: 60W-100W
Small&Medium Laser Tube: 120W-150W
Medium Laser Tube: 300W
Regular Laser Tube - C Series
High Power Catalyst CO2 Laser Tube-M series
Regular Catalyst CO2 Laser Tube-R series
High Class Catalyst CO2 Laser Tube-H series
Laser Power: the 2nd generation with high quality


Model
Length
(mm)
Outer
Diamter
(mm)
Output power
(W)
Rated Power
(W)
Ignition Voltage
(KV)
Ignition Current
(MA)
Working Voltage
(KV)
Working Current
(MA)
PRC-1200
1200
55
60-70
60
18-20
6-8
14-15
18-20
PRC-1600A
1600
60
75-85
80
20-22
6-8
14-15
20-25
PRC-1600B
1600
80
95-110
100
20-23
6-9
16-17
24-26
PRC-1800 1800
80
115-125
120
22-25
7-9
16-17
25-28
PRC-2000
2000
80
145-155
150
23-26
8-10
16-17
25-30
