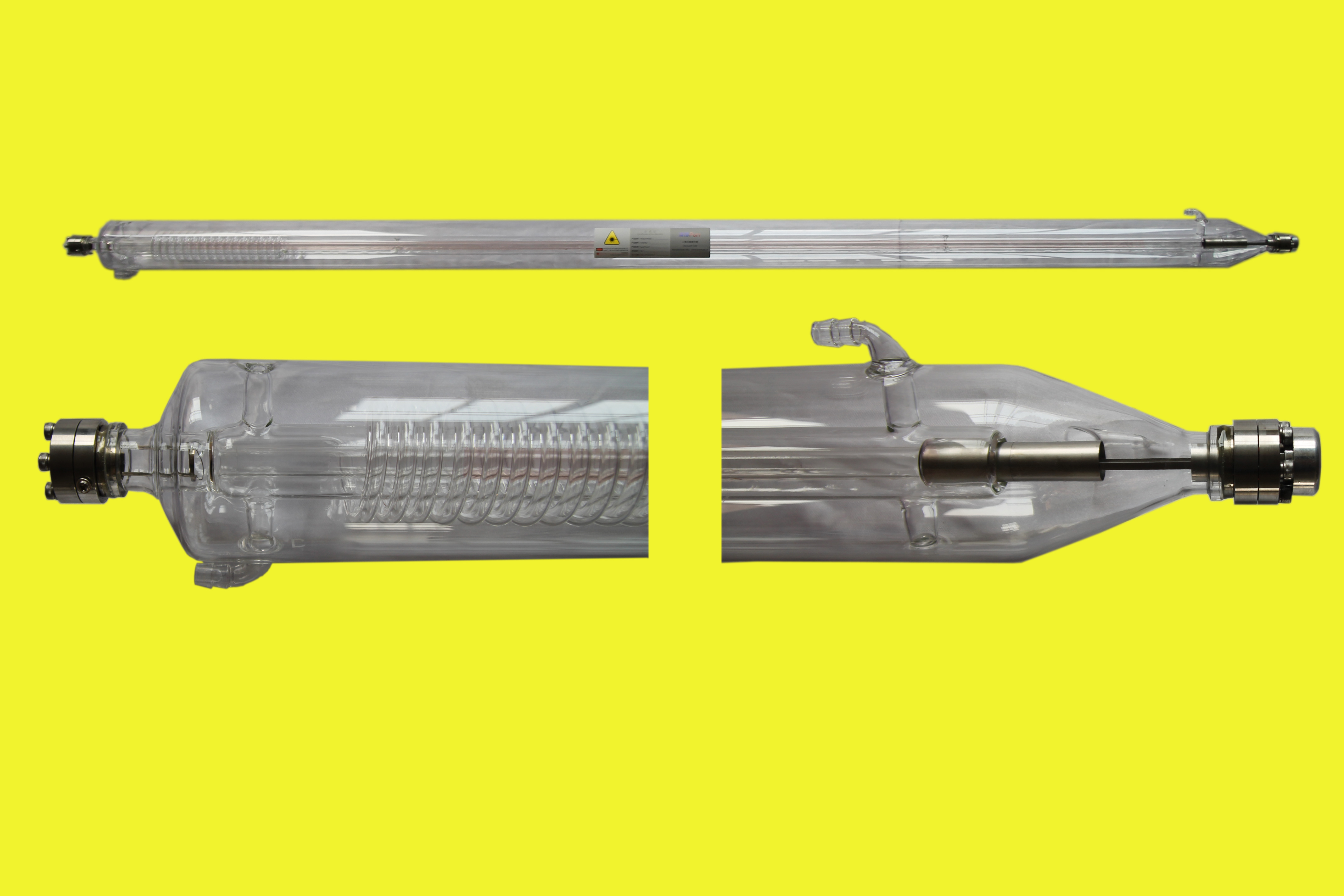

High Class Catalyst CO2 Laser Tube-H series
     High Class Catalyst CO2 Laser Tube-H series

 Prdouct Features:
1.Stability: the raw glass tube body is imported.We are the unique manufacturer for adopting advanced foreign technology to use metal-glass sealing technology on CO2 laser tube.
2. Power: the H series CO2 Laser Tube uses imported mirror and lens. The power is 40% higher than other laser tube with same length.
3. Long Lifespan: the catalyst coating on discharge tube with unique electrode processing makes the laser output is more stable, ensures the working life is around 10000 hours, avoid power weakening during long time working.
4. Laser Beam: adjustable optical resonant cavity, super laser beam quality. The beam is up to TEM00, the power is stable, it’s competitive for industrial application.
5. Appearance: all accessories are processed by imported equipments, unique metal and glass tube sealing technology, standardized production.


  High Class Catalyst CO2 Laser Tube-H series Parameter:
Small Laser Tube: 25W-50W
Small&Medium Laser Tube: 60W-100W
Small&Medium Laser Tube: 120W-150W
Medium Laser Tube: 300W
Regular Laser Tube - C Series
High Power Catalyst CO2 Laser Tube-M series
Regular Catalyst CO2 Laser Tube-R series
High Class Catalyst CO2 Laser Tube-H series
Laser Power: the 2nd generation with high quality


Model/
Length
(mm)
Outer Diamter
(mm)
Output power
(W)
Rated Power
(W)
Ignition Voltage
(KV)
Ignition Current
(MA)
Working Voltage
(KV)
Working Current
(MA)

PRH-1200

1200
80
80-90
80
20-22
6-8
14-15
20-25
PRH-1400
1400
80
95-110

100

20-23
6-9
16-17
24-26
PRH-1600
1600
80
115-125
120
22-25
7-9
16-17
25-28
PRH-1800
1800
80
140-155
150
23-26
8-10
16-17
25-30
PRH-2000
2000
80
170-180
180
23-26
8-10
16-17
25-35
